Tutorial: Instant-Use Move Behaviours with Task Trees
This tutorials illustrates examples of using the move behaviour classes for building behaviour trees based on the Task Trees framework.
The task trees framework reduces the complexity in building behaviour trees by providing a skeleton behaviour tree and functions for operating the tree with ease.
This demo requires the Panda robot model.
Running the Demo Program
Assume that the task trees and the arm commander packages are installed in a catkin_workspace. Refer to the Installation Guide
Change directory to the root of the catkin workspace, run
source devel/setup.bash.Change directory to this demo folder, run one of the demo programs such as
/usr/bin/python3 simple_move_1.py.
Example 1: The Minimal Program
The program simple_move_1.py illustrates a small program that build the simplest behaviour tree and populate it with a move behaviour class.
The following is the common constructor for the series of demo programs. The class is based on the TaskTreeManager, which is the baseline framework class.
It setups the arm commander, creates a branch and stick the branch to the framework through the function _add_priority_branch. Finally, the function _install_bt_and_spin is called to run the behaviour tree.
class SimpleMoveApplication(TaskTreesManager):
def __init__(self, arm_commander:GeneralCommander, spin_period_ms:int=10):
super(SimpleMoveApplication, self).__init__(arm_commander)
# setup the robotic manipulation platform through the commander
self.arm_commander.abort_move(wait=True)
self.arm_commander.reset_world()
# build and install the behavior tree
self._add_priority_branch(self.create_move_branch())
# install and unleash the behaviour tree
self._install_bt_and_spin(self.bt, spin_period_ms)
The function create_move_branch is given below, which creates a Sequence of one behaviour.
def create_move_branch(self) -> Composite:
move_branch = py_trees.composites.Sequence(
'move_branch',
memory=True,
children=[
DoMoveXYZ('move_xyz', True, arm_commander=self.arm_commander, target_xyz=[0.3, 0.0, 0.6]),
],
)
return move_branch
It passes a constant to the target_xyz parameter, which moves the end-effector to xyz = [0.3, 0.0, 0.6] in the default reference frame.
Example 2: Two Behaviours in a Sequence
The program simple_move_2.py defines a sequence with two behaviours.
def create_move_branch(self) -> Composite:
move_branch = py_trees.composites.Sequence(
'move_branch',
memory=True,
children=[
DoMoveXYZ('move_xyz', True, arm_commander=self.arm_commander, target_xyz=[0.3, 0.0, 0.2]),
DoMoveXYZ('move_xyz', True, arm_commander=self.arm_commander, target_xyz=[0.3, 0.0, 0.6]),
],)
return move_branch
Example 3: Late Binding of the Target XYZ
The program simple_move_3.py shows how the class DoMoveXYZ can accept a function so that the target xyz is determined at the tick-tock time.
def create_move_branch(self) -> Composite:
move_branch = py_trees.composites.Sequence(
'move_branch',
memory=True,
children=[
DoMoveXYZ('move_xyz', True, arm_commander=self.arm_commander, target_xyz=self.generate_random_xyz),
],)
return move_branch
The function self.generate_random_xyz is listed below. It returns a xyz list with each of the three components randomly generated.
def generate_random_xyz(self) -> list:
xyz = [random.uniform(0.1, 0.5), random.uniform(-0.3, 0.3), random.uniform(0.2, 0.6)]
logger.info(f'generate_random_xyz: {xyz}')
return xyz
Example 4: Two Sequence Branches and the class DoMoveXYZRPY
The program simple_move_4.py shows a behaviour tree with two sequence branches. It also demonstrates how separating the target position and orientation in the class DoMoveXYZRPY enables finer movement control.
The constructor has included code that creates two branches.
...
# build the behaviour tree
self.move_branch = self.create_move_branch()
self.init_branch = self.create_init_branch()
self.init_branch = py_trees.decorators.OneShot('init_oneshot_branch', policy = py_trees.common.OneShotPolicy.ON_COMPLETION, child=self.init_branch)
self.root_sequence = py_trees.composites.Sequence('root_sequence', memory=True, children=[
self.init_branch,
self.move_branch,
])
The function create_init_branch.
def create_init_branch(self) -> Composite:
init_branch = py_trees.composites.Sequence(
'init_branch',
memory=True,
children=[
DoMoveXYZRPY('reset_pose', True, arm_commander=self.arm_commander, target_xyz=[0.307, 0.0, 0.588],
target_rpy=[3.139, 0.0, -0.785]),
],)
return init_branch
The function create_move_branch. Note that the parameter target_xyz is a compositional list. The first value specifies only x = 0.3 but leaves the y and z open. The second value provides a random y and a random z. The x component of the second value is ignored because x is already specified by the first value.
def create_move_branch(self) -> Composite:
move_branch = py_trees.composites.Sequence(
'move_branch',
memory=True,
children=[
DoMoveXYZRPY('move_xyzrpy', True, arm_commander=self.arm_commander,
target_xyz=[[0.3, None, None], self.generate_random_xyz],
target_rpy=self.generate_random_rpy),
],
)
return move_branch
The following table explains the composition of the parameter target_xyz.
The Rank |
The Value |
Composition of the Target XYZ |
Remarks |
|---|---|---|---|
0 |
|
||
1 |
|
|
|
2 |
self.generate_random_xyz |
|
Assume the function returns [rx, ry, rz] |
Example 5: More Complex Trees and the class DoMoveDisplaceXYZ
The program simple_move_5.py shows a more complex move branch, which utilizes also the Repeat decorator from py-trees. It defines a movement along the four sides of a rectangle. The sequence is moving right, up, left, and down, each side is divided into 5 steps.
def create_move_branch(self) -> Composite:
move_branch = py_trees.composites.Sequence(
'move_branch',
memory=True,
children=[
py_trees.decorators.Repeat('repeat_move_dy', child=DoMoveDisplaceXYZ('move_dy', True, arm_commander=self.arm_commander, dxyz=[0.0, 0.05, 0]),
num_success=5),
py_trees.decorators.Repeat('repeat_move_dz', child=DoMoveDisplaceXYZ('move_dz', True, arm_commander=self.arm_commander, dxyz=[0, 0, 0.05]),
num_success=5),
py_trees.decorators.Repeat('repeat_move_ndy', child=DoMoveDisplaceXYZ('move_ndy', True, arm_commander=self.arm_commander, dxyz=[0, -0.05, 0]),
num_success=5),
py_trees.decorators.Repeat('repeat_move_ndz', child=DoMoveDisplaceXYZ('move_random_ndz', True, arm_commander=self.arm_commander, dxyz=self.generate_random_dxyz),
num_success=5),
],
)
return move_branch
Example 6: Two Behaviours in a Sequence using DoMovePose
The program simple_move_6.py defines a sequence with two behaviours using DoMovePose, with which both position and rotation can be specified.
def create_move_branch(self) -> Composite:
move_branch = py_trees.composites.Sequence(
'move_branch',
memory=True,
children=[
DoMovePose('move_xyzrpy', True, arm_commander=self.arm_commander, target_pose=[0.5, 0.0, 0.2, 3.14, 0, 1.58]),
DoMovePose('move_xyzrpy', True, arm_commander=self.arm_commander, target_pose=[0.5, 0.0, 0.5, 3.14, 0.2, 0]),
],)
return move_branch
Example 7: Late Binding of the Target Pose in DoMovePose
The program simple_move_7.py shows how the class DoMovePose can accept a function so that the target pose is determined at the tick-tock time. In this example, the target pose is based on the current pose with a random component from (x, y, z, yaw) changed by a random value.
def create_move_branch(self) -> Composite:
move_branch = py_trees.composites.Sequence(
'move_branch',
memory=True,
children=[
DoMovePose('move_random_step', True, arm_commander=self.arm_commander, target_pose=self.generate_random_move),
],)
return move_branch
The function self.generate_random_move is listed below. It obtains the current pose in xyzrpy format and then
def generate_random_move(self) -> list:
xyzrpy = self.arm_commander.pose_in_frame_as_xyzrpy()
which_dim = random.randint(0, 4)
if which_dim in [0, 1, 2]:
xyzrpy[which_dim] += random.uniform(-0.2, 0.2) # the x, y, or z component
elif which_dim == 3:
xyzrpy[5] += random.uniform(-1.57, 1.57) # the yaw component
logger.info(f'generate_random_move: {xyzrpy}')
return xyzrpy
Example 8: Multi-Pose Move with DoMoveMultiPose
The program multi_move_1.py defines a move_branch with one behaviour of the class DoMoveMultiPose, of which the movement is a continous
one passing through multiple poses or waypoints. The target_poses parameter accepts a list of poses, each of which can be a 6-list (xyzrpy),
7-list (xyzqqqq), Pose, or PoseStamped.
def create_move_branch(self) -> Composite:
move_branch = py_trees.composites.Sequence(
'move_branch',
memory=True,
children=[
DoMoveMultiPose('move_xyz', True, arm_commander=self.arm_commander, target_poses=[
(0.6, 0.0, 0.4, 3.14, 0, 0),
(0.6, 0.2, 0.5, 3.14, 0, 0),
(0.6, 0.2, 0.6, 3.14, 0, 1.58),
(0.6, 0.0, 0.7, 3.14, 0, 3.14),
(0.6, -0.2, 0.6, 3.14, 0, 1.58),
(0.6, -0.2, 0.5, 3.14, 0, 0),
(0.6, 0.0, 0.4, 3.14, 0, 0),
]),
],
)
return move_branch
Example 9: Late Binding of the Target Poses in DoMoveMultiPose
The behaviour class DoMoveMultiPose supports late binding in the parameters target_poses and reference_frames.

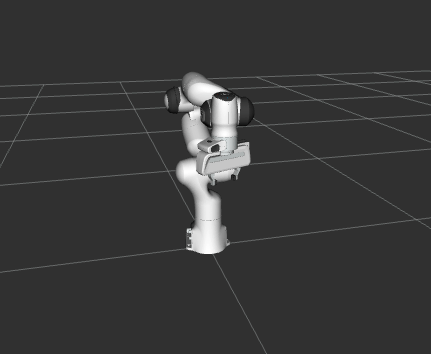

The program multi_move_2.py defines a move_branch with three behaviours. The first behaviour DoMovePose moves the end-effector to a constant starting pose. The second behaviour, based on DoMoveMultiPose, minics a scan pattern along the y and z axes. The final behaviour, also based on DoMoveMultiPose, rotates the end effector randomly. The last two behaviours use late binding so that the poses can be generated on the fly based on the current pose of the end effector.
...
children=[
DoMovePose('move_start_pose', True, arm_commander=self.arm_commander, target_pose=[0.3, 0.0, 0.3, 3.14, 0, 2.3]),
DoMoveMultiPose('scan_move_pattern', True, arm_commander=self.arm_commander, target_poses=self.generate_scan_movement),
DoMoveMultiPose('multi_rotations', True, arm_commander=self.arm_commander, target_poses=self.generate_random_rotations),
],
...
The second behaviour specifies the function generate_scan_movement as the target_poses. The function returns a list of 6-list (xyzrpy) poses generated using the current pose as the starting point during tick-tock time.
SCAN_PATTERN = [(1, 0.3), (1, -0.6), (2, 0.05),
(1, 0.6), (1, -0.6), (2, 0.05),
(1, 0.6), (1, -0.3)]
def generate_scan_movement(self) -> list:
xyzrpy = self.arm_commander.pose_in_frame_as_xyzrpy()
target_poses = [xyzrpy]
# change the xyzrpy pose according to the SCAN_PATTERN, of which each element comprises (the index to change, the change value)
for s in MultiMoveTaskManager.SCAN_PATTERN:
xyzrpy = xyzrpy.copy()
xyzrpy[s[0]] += s[1]
target_poses.append(xyzrpy)
logger.info(f'generate_scan_movement: {xyzrpy}')
return target_poses
The last behaviour specifies the function generate_random_rotations as the target poses.
def generate_random_rotations(self) -> list:
xyzrpy = self.arm_commander.pose_in_frame_as_xyzrpy()
target_poses = [xyzrpy]
# change the yaw component of the xyzrpy pose randomly
for i in range(10):
xyzrpy = xyzrpy.copy()
xyzrpy[5] += random.uniform(-1.57, 1.57)
target_poses.append(xyzrpy)
logger.info(f'generate_random_rotations: {xyzrpy}')
return target_poses
