Design Notes: Pick-N-Drop Demo

The pick-n-drop application simulates the operation of discovery of a sphere on a desktop, picking it up to disposing it to a bin. The operation will run indefinitely as the simulator creates new spheres at random locations.

This demo requires the Panda robot model.

Source Code

Running the Demo Program

Assume that the task trees and the arm commander packages are installed in a catkin_workspace. Refer to the Installation Guide

• Change directory to the root of the catkin workspace, run source devel/setup.bash.

• Change directory to this demo folder, run /usr/bin/python3 demo.py.

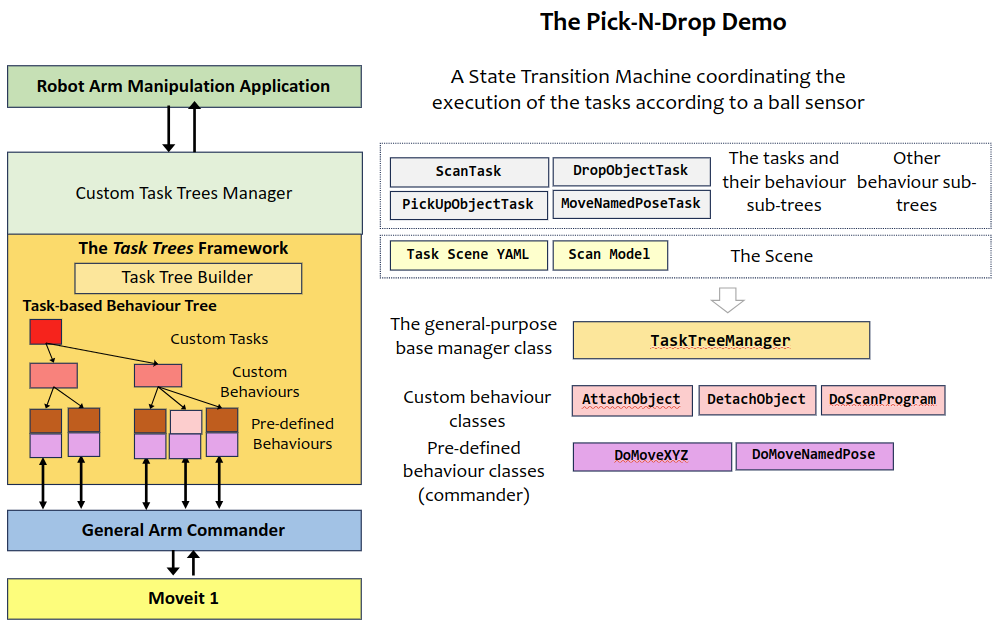

Application Design based on the Task Trees Architecture

The Tasks

The application divides the operation into four tasks:

• The Scan task: hovering over the desktop in a scan pattern for an attached sensor to find and locate any sphere. The task will run indefintely until it is cancelled when a sphere is found.

• The Pick task: moving to a location right on top of the sphere, descending to a prescribed height, and attaching the sphere to the gripper.

• The Drop task: moving to an intermediate pose (the home pose), and then moving to a location on top of the bin, and detaching the sphere from the gripper.

• The Move Named Pose task: moving to a resting pose (the stow pose).

Pre-Defined Behaviours Used

• DoMoveNamedPose: Moves to a named pose as defined in the task scene

• DoMoveXYZ: Moves to a target position (xyz)

Custom Behaviours Developed

• DoScanProgram (based on ConditionalCommanderBehaviour): Hovers to the next location of a scan line pattern that covers an area.

• SimGrabObject (based on py_trees.behaviour.Behavior): Simulates the grabbing of the sphere.

• SimDropObject (based on py_trees.behaviour.Behavior): Simulates the releasing of the grabbed sphere.

The Behaviour Sub-Trees for the Tasks

The Scan Task

Behaviour Classes	Conditions	Parameters	Remarks
DoMoveNamedPose	is in the inner region	the home pose	move to home pose first if in inner region
DoMoveXYZ	is at home pose	the composition of the start and scan_z_level position	move to the starting position
DoScanProgram		The next position provided by the scan model	Decorated by SuccessIsRunning

The PickUpObject Task

Behaviour Classes	Conditions	Parameters	Remarks
DoMoveXYZ		a prescribed height above the sphere	move to above object
DoMoveXYZ		the grab position	descend to object
SimAttachObject

The DropObject Task

Behaviour Classes	Conditions	Parameters	Remarks
DoMoveNamedPose	is in the inner region	the home pose	move home first if in inner region
DoMoveXYZ		the drop position	descend to object
SimDetachObject

The MoveNamedPose Task

Behaviour Classes	Conditions	Parameters	Remarks
DoMoveNamedPose	is not in the inner region	the home pose	move home first if not in inner region
DoMoveNamedPose		the target named pose

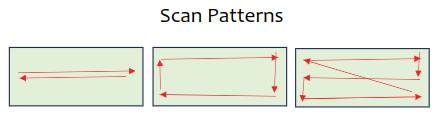

The Scan Pattern

The scan pattern can be customized. The following are some of the possible patterns.

The Demo Application

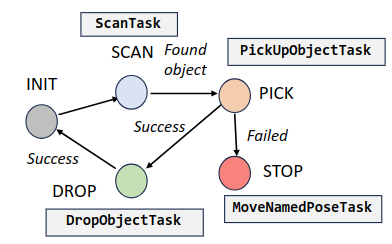

The demo application uses the following state transition machine to determine which task is to be submitted to the task tree manager for execution.

In the SCAN state, the application monitors results from the sensor. If a sphere is found, the application cancels the ScanTask and jumps to the PICK state.

The Program Files

• task_trees_manager_pnd.py: defines the custom task tree manager, behaviour sub-trees for every task and the tasks.

• behaviours_pnd.py: defines the custom behaviours.

• demo.py: implements the application and its state transition machine.

• scan_model: implements the custom scan patterns for the ScanTask.

• task_scene.yaml: defines the positions and regions

Author

Dr Andrew Lui, Senior Research Engineer
Robotics and Autonomous Systems, Research Engineering Facility
Research Infrastructure
Queensland University of Technology

Latest update: Mar 2024
