Develop Custom Behaviours

The IUB classes have inherited significant functionality from the three base classes of the task trees framework, namely, ConditionalBehaviour, ConditionalCommanderBehaviour, and SceneConditionalCommanderBehaviour. The py-tree class py_trees.behaviour.Behaviouris their common ancestor.

• ConditionalBehaviour inherits from Behaviour and adds conditional execution, which determines whether the behaviour needs execution at ticking.

• ConditionalCommanderBehaviour inherits from ConditionalBehaviour and adds the capability of moving the robot manipulator through the arm commander.

• SceneConditionalCommanderBehaviour inherits from ConditionalCommanderBehaviour and adds the capability of logical scene binding according to a scene configuration.

Class: task_trees.behavious_base.ConditionalBehaviour

The class ConditionalBehaviour is the base for specialized behaviours adopting the conditional behaviour notion. The condition_fn parameter is pre-processed at the class creation phase and converted into a form facilitating evaluation during the tick-tock phase.

class ConditionalBehaviour(Behaviour):
    SUCCESS_IF_FALSE = 0
    FAILURE_IF_FALSE = 1
    def __init__(self, name, condition_fn=True, condition_policy=ConditionalBehaviour.SUCCESS_IF_FALSE):
        super(ConditionalBehaviour, self).__init__(name)

    def preprocess_condition_fn():
       ....
    def is_condition_satisfied():
       ....

The parameter condition_policy determines whether to return SUCCESS or FAILURE when the condition is False. The default value of None will make the update function returns according to the parent node. Returning SUCCESS is suitable for a Sequence parent with memory while FAILURE is for a Selector parent with memory.

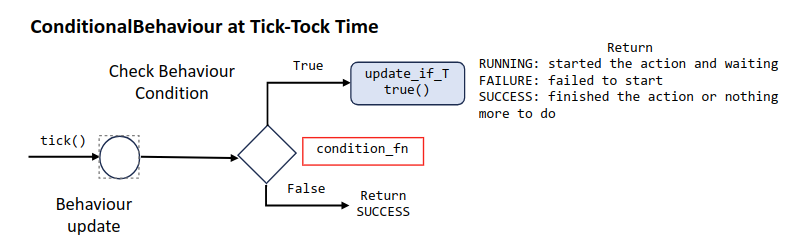

Subclasses of ConditionalBehaviour should override the function update_if_true and implement actions to take if condition_fn returns True. The following describes the logic flow for the execution of update_if_true.

Class: task_trees.behavious_base.ConditionalCommanderBehaviour

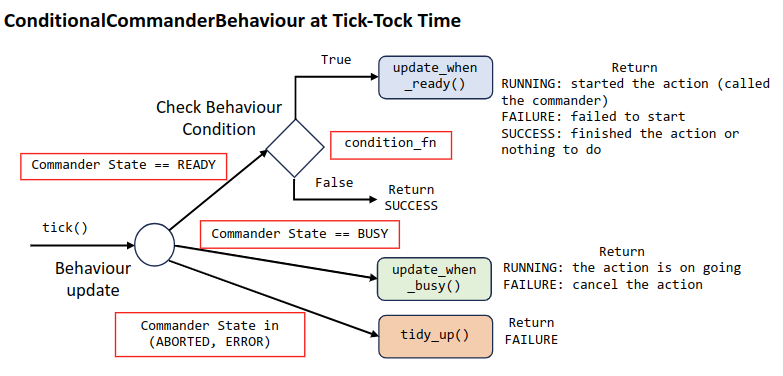

The class ConditionalCommanderBehaviour implements the common logic of a behaviour in dealing with the states of the arm commander. The following shows the structure of the update function of ConditionalCommanderBehaviour. Subclasses of CommanderBehaviour will implement the three functions highlighted in the code snippet.

The main job of the update or update_if_true function is to handle the different states of the arm commander. The following table summarizes the action taken according to the current arm commander state.

Arm Commander State	Action to be Taken	Return Value
READY	Call update_when_ready	The return value of the call is returned as the new behaviour status
BUSY	Call update_when_busy	The return value of the call is returned as the new behaviour status
SUCCEEDED	Call tidy_up	SUCCESS
ABORTED	Set the task’s state to ABORTED and call tidy_up	FAILURE
ERROR	Set the task’s state to FAILED and call tidy_up	FAILURE

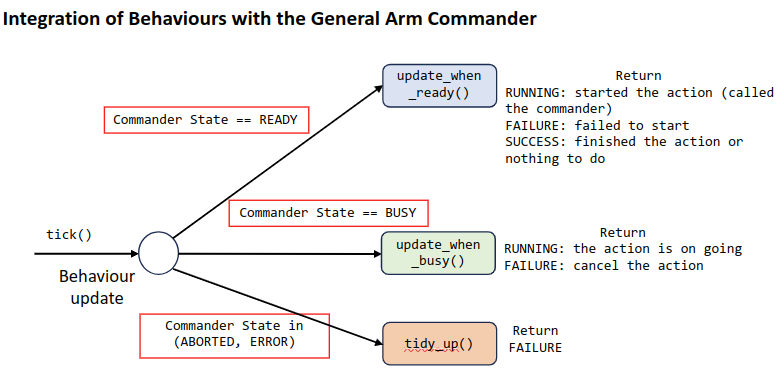

Subclasses of ConditionalCommanderBehaviour should override the function update_if_ready, and optionally override the functions update_if_busy and tidy_up. The function update_if_ready is where the arm commander is invoked. The function update_if_busy usually houses code for monitoring the progress including any alert to raise, such as an impending collision. The function tidy_up usually contains code for reset the arm commander to the previous configuration if something has been changed by this behaviour in update_if_ready. The following figure summarizes the above roles of the functions.

Example: DoMoveJointPose

The DoMoveJointPose IUB class is an example subclass of ConditionalCommanderBehaviour

class DoMoveJointPose(ConditionalCommanderBehaviour):

    def __init__(self, name, condition_fn=True, condition_policy=None, arm_commander=None, target_joint_pose=None):
        super(DoMoveJointPose, self).__init__(name=name, condition_fn=condition_fn, condition_policy=condition_policy, arm_commander=arm_commander)
        ...
        self.joint_pose = target_joint_pose

    def update_when_ready(self):
        # obtain the named pose, and if it is a function, call the function to get the string
        joint_pose = self.joint_pose
        if hasattr(joint_pose, '__call__'):
            joint_pose = joint_pose()
        # validate the named_pose
        if joint_pose is None or type(joint_pose) != list:
            logger.error(f'DoMoveJointPose ({self.name}): invalid joint pose "{joint_pose}" parameter')
            return Status.FAILURE
        # send the command to the General Commander in an asynchronous manner
        self.arm_commander.move_to_joint_pose(joint_pose, wait=False)
        return Status.RUNNING

Notes:

• The implementation update_when_ready is executed when the condition function (condition_fn) returns True and the arm commander is in the READY state at the ticking of the behaviour instance.

• The self.joint_pose instance variable supports physical and dynamic binding, which is determined by its type. If self.joint_pose is a function reference, then a function call is made to resolve the physical joint values.

• Issue the move command by passing the physical joint values through the arm commander’s move_to_joint_pose function.

• Return Status.RUNNING to set the behaviour in the RUNNING status.

• From now on, the base class ConditionalCommanderBehaviour will take over the follow-up management of the move command, querying the arm commander for whether the commander is switched to a completion state. It will then change the behaviour to Status.SUCCESS or Status.FAILURE according to the outcome of the command. This is transparent to the developer of DoMoveJointPose

Class: task_trees.behavious_base.SceneConditionalCommanderBehaviour

The class ConditionalCommanderBehaviour implements the resolution of logical positions and rotations of the task scene into physical positions and rotations. It uses the model provided throught the parameter scene for the necessary information for the conversion.

Custom move behaviours that work at the logical scene level should subclass ConditionalCommanderBehaviour.

Example: DoMoveNamedPose

The DoRotate IUB class is an example subclass of SceneConditionalCommanderBehaviour. It accepts a move target that is utimately resolvesd into a rotation in the rpy format.

class DoRotate(SceneConditionalCommanderBehaviour):
    def __init__(self, name, condition_fn, condition_policy=None, arm_commander=None, scene=None, target_rpy=None, reference_frame=None):
        super(DoRotate, self).__init__(name=name, condition_fn=condition_fn, condition_policy=condition_policy,
                                       arm_commander=arm_commander, scene=scene, reference_frame=reference_frame)
        if target_rpy is None:
            logger.error(f'{__class__.__name__} ({self.name}): parameter (target_rpy) is None -> fix the missing value at behaviour construction')
            raise AssertionError(f'A parameter should not be None nor missing')
        if scene is None:
            logger.warning(f'{__class__.__name__} ({self.name}): no scene model is provided -> acceptable if logical pose is not involved in this behaviour')
        self.target_rpy = target_rpy

    def update_when_ready(self):
        # evaluate physical target rpy
        if self.the_scene is None:
            target_rpy = self.compute_physical_target(self.target_rpy)
        else:
            target_rpy = self.compute_physical_target(self.target_rpy, self.the_scene.query_rotation_as_rpy)

        if self.target_rpy is None or target_rpy is None:
            logger.error(f'DoRotate ({self.name}): invalid target_rpy parameter {self.target_rpy}')
            return Status.FAILURE

        # send the command to the General Commander in an asynchronous manner
        binded_reference_frame = self._bind_reference_frame(self.reference_frame)
        logger.info(f'DoRotate ({self.name}): started rotate to orientation: {target_rpy} in reference frame "{binded_reference_frame}"')
        self.arm_commander.rotate_to_orientation(roll=target_rpy[0], pitch=target_rpy[1], yaw=target_rpy[2], reference_frame=binded_reference_frame, wait=False)
        return Status.RUNNING

Notes:

• The self.compute_physical_target is a function of SceneConditionalCommanderBehaviour that performs the resolution of the target_rpy parameter using logical binding or dynamic binding if needed.

• The constructor of SceneConditionalCommanderBehaviour requires a scene object, which is the scene configuration for logical binding.

• The class DoRotate however is designed to accommodate the situation where no scene configuration is provided, hence the if-else structure in the function update_when_ready. If a scene object is not given, the class does not support logical binding.
