Overview of the API of RViz Marker Tools

QUT REF Collection License: GPL v3

The Marker object creation helper functions

The functions are listed in the table below.

Functions

Descriptions

Remarks

create_axisplane_marker

A plane object indicating an axis plane (xy, yz, or xz) given a 2D bounding box

create_cube_marker_from_bbox

A 3D box object given a 3D bounding box

The bbox is aligned with the axes of the reference frame

create_cube_marker_from_xyzrpy

A 3D box object given the position, orientation and dimension

The position, orientationm and dimension can all be specified

create_arrow_marker

An arrow marker

create_line_marker

A line marker

create_path_marker

A path marker made up of multiple waypoints

create_sphere_marker

A sphere marker

create_cylinder_marker

A cylinder marker

create_text_marker

A text marker

create_mesh_marker

An object marker specified by a mesh file

Common Parameters in the Marker-creation Functions

The following table lists the common parameters to all the marker-creation functions. The parameters name and id form a composite key that must be unique. | Parameters | Remarks | Examples | | ——— | —— | ——– |
| name | The namespace of the marker | A string | | id | The id of the marker | An integer | | reference_frame | The marker’s reference frame | | | rgbs | The colour of the marker | A list of RGB 3 values or RGBA 4 values (each value is 0 to 1) | | lifetime | The visible duration in seconds. Only applicable to temporary markers | A number or rospy.Duration |

Axis-plane Markers

Use the function create_axisplane_marker to create a plane marker that is aligned with one of the 3 axis plane.

rv = RvizVisualizer()
# add a axis plane marker on xy plane as a persistent marker to the RVizVisualizer
axis_plane_marker_xy = create_axisplane_marker(name='axisplane', id=1, bbox2d=[-1, -1, 1, 1], offset=2, reference_frame='map', axes='xy', rgba=[1, 0, 0])
rv.add_persistent_marker(axis_plane_marker_xy)
# add a axis plane marker on xy plane as a persistent marker to the RVizVisualizer
axis_plane_marker_xz = create_axisplane_marker(name='axisplane', id=2, bbox2d=[-1, -1, 1, 1], offset=2, reference_frame='map', axes='xz', rgba=[0, 1, 0])
rv.add_persistent_marker(axis_plane_marker_xz)
# add a axis plane marker on yz plane as a persistent marker to the RVizVisualizer
axis_plane_marker_xz = create_axisplane_marker(name='axisplane', id=3, bbox2d=[-1, -1, 1, 1], offset=2, reference_frame='map', axes='yz', rgba=[0, 0, 1])
rv.add_persistent_marker(axis_plane_marker_xz)

The axis plane markers are rectangles algined with one of the three axis planes (xy, xz, or yz) in a reference frame. They are useful to indicate planes in movement planning.

Parameters

Remarks

Examples

bbox2d

A list of 4 numbers defining the bounding box

[xmin, ymin, xmax, ymax] for the xy plane

offset

The perpendicular distance to the zero plane

offset of 2 for the xy plane means that the marker is at z = 2

axes

The axis plane

xy, yz, or xz

Cuboid Markers specified in 3D Bounding-box

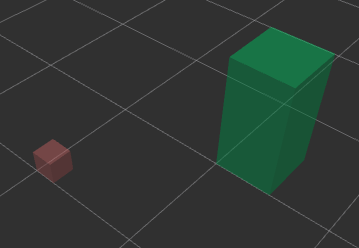

Use the function create_cube_marker_from_bbox to create a cuboid marker defined by a 3D bounding box.

# add a small cube marker
cube_marker_1 = create_cube_marker_from_bbox(name='cube', id=1, bbox3d=[0, 0, 0, 0.2, 0.2, 0.2], reference_frame='map',
                                            rgba=[1.0, 0.5, 0.5, 0.5])
rv.add_persistent_marker(cube_marker_1)
# add a larger cube marker
cube_marker_2 = create_cube_marker_from_bbox(name='cube', id=2, bbox3d=[1, 1, 0, 1.5, 1.5, 1.0], reference_frame='map',
                                            rgba=[0.0, 1.0, 0.5, 0.5])
rv.add_persistent_marker(cube_marker_2)

Figure

Parameters

Remarks

Examples

bbox3d

A list of 6 numbers defining the bounding box

[xmin, ymin, zmin, xmax, ymax, zmax] for the 3D box

Cuboid Markers specified in XYZRPY and Dimensions

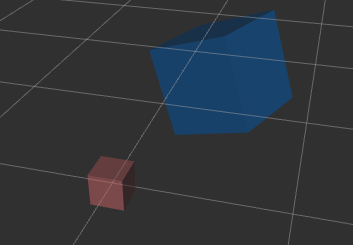

Use the function create_cube_marker_from_bbox to create a cuboid marker defined by a 3D bounding box.

# add a small cube marker
cuboid_marker_1 = create_cube_marker_from_xyzrpy(name='cube', id=1, xyzrpy=[0, 0, 0, 0, 0, 0], reference_frame='map',
                                            dimensions=0.2, rgba=[1.0, 0.5, 0.5, 0.5])
rv.add_persistent_marker(cuboid_marker_1)
# add a larger cube marker
cuboid_marker_2 = create_cube_marker_from_xyzrpy(name='cube', id=2, xyzrpy=[0.5, 0.5, 0.5, 1.2, 0.0, 1.2], reference_frame='map',
                                            dimensions=0.5, rgba=[0.0, 0.5, 1.0, 0.5])
rv.add_persistent_marker(cuboid_marker_2)

Figure

Parameters

Remarks

Examples

xyzrpy

A list of 6 numbers defining the pose in xyzrpy format

dimensions

The size of a cube or the three dimensions of a cuboid

A number or a list of 3 numbers

Arrow Markers

Use the function create_arrow_marker to create an arrow of a given pose and thickness.

arrow_marker = create_arrow_marker(name='arrow', id=3, xyzrpy=[1, 1, 1, 0, 3.14, 0], reference_frame='map',
                            dimensions=0.50, rgba=[1.0, 0.5, 0.5, 1.0])
rv.add_persistent_marker(arrow_marker)

Parameters

Remarks

Examples

xyzrpy

A list of 6 numbers defining the pose in xyzrpy format

dimensions

The thickness of the arrow

A number

Line Markers

Use the function create_line_marker to create an line defined by the start and the end positions.

line_marker = create_line_marker(name='line', id=i, xyz1=[0.5, 0, 0], xyz2=[0.5, 1, 0], reference_frame='map',
                                                    line_width=0.02, rgba=[1.0, 1.0, 0.0, 1.0])
rv.add_persistent_marker(line_marker)

Parameters

Remarks

Examples

xyz1

The position of one end of the line

A list of 3 numbers xyz

xyz2

The position of the other end of the line

A list of 3 numbers xyz

line_width

The thickness of the line

A number

Path Marker

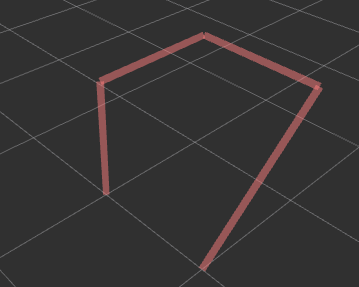

A path is line with zero of more waypoints. Use the function create_path_marker to create a path defined by two or more positions in a list.

path_marker = create_path_marker(name='path', id=1, xyzlist=[(0, 0, 0), (0, 0, 1), (0, 1, 1), (1, 1, 1), (1, 0, 0)], reference_frame='map',
                                            line_width=0.05, rgba=[1.0, 0.5, 0.5, 0.5])
rv.add_persistent_marker(path_marker)

Parameters

Remarks

Examples

xyzlist

The positions of the start, end and the waypoints in between of a path

A list of xyz positions in a tuple or a list

line_width

The thickness of the line

A number

Figure

Sphere Marker

Use the function create_sphere_marker to create a path defined by two or more positions in a list.

sphere_marker = create_sphere_marker(name='sphere', id=1, xyz=[1, 1, 1], reference_frame='map', dimensions=0.20, rgba=[1.0, 0.5, 0.5, 1.0])
rv.add_persistent_marker(sphere_marker)

Parameters

Remarks

Examples

xyz

The centre position of the sphere

A list of three numbers (xyz)

dimensions

The size of the sphere

A number

Cylinder Marker

Use the function create_cylinder_marker to create a cylinder defined by the pose and the dimensions in x, y, and height.

cylinder_marker = create_cylinder_marker(name='path', id=1, xyzrpy=[0, 0.5, 0.5, 0, 0, 0], reference_frame='map',
                                            dimensions=[0.2, 0.2, 0.5], rgba=[1.0, 1.0, 0.5, 0.5])
rv.add_persistent_marker(cylinder_marker)

Parameters

Remarks

Examples

xyzrpy

The pose of the cylinder

A list of 6 numbers (xyzrpy)

dimensions

The x, y dimension and the height

A list of 3 numbers

Mesh Marker

Use the function create_mesh_marker to create a marker based on a mesh object, which is defined in a STL or DOE file.

# computing the full path of the stl file
teapot_mesh = 'file://' + os.path.join(os.path.dirname(__file__), '../docs/assets/UtahTeapot.stl')
# teapot_mesh = os.path.join(os.path.dirname(__file__), '../docs/assets/UtahTeapot.stl')
# teapot_mesh = 'package://rviz_marker_tools/docs/assets/UtahTeapot.stl'
# teapot_mesh = 'rviz_marker_tools/docs/assets/UtahTeapot.stl'
mesh_marker = create_mesh_marker(name='teapot', id=1, file_uri=teapot_mesh, xyzrpy=[-1.0, -1.0, 0.0, 0, 0, 0],
                            reference_frame='map', dimensions=[0.05, 0.05, 0.05], rgba=[0.5, 1.0, 1.0, 1.0])
rv.add_persistent_marker(mesh_marker)

Parameters

Remarks

Examples

file_uri

The uri of the STL or DOE file containing the mesh object

A string

xyzrpy

The pose of the mesh object

A list of 6 numbers (xyzrpy)

dimensions

The dimensions of the mesh object

A list of 3 numbers or a single number

The file_uri can be specified in one of the several formats.

  • Full path: /home/qcr/catkin_ws/src/rviz_marker_tools/docs/assets/UTahTeapot.stl

  • Local path under the package: rviz_marker_tools/docs/assets/UTahTeapot.stl

  • The file protocol: file:///home/qcr/catkin_ws/src/rviz_marker_tools/docs/assets/UTahTeapot.stl

  • The package protocol: package://rviz_marker_tools/docs/assets/UtahTeapot.stl

Note that the file location must be accessible by RViz if the above formats are specified if RViz is running on another computer.

Text Marker

Use the function create_text_marker to create a text marker at a pose of a particular size.

text_marker_1 = rv.add_persistent_marker(create_text_marker(name='text', id=1, text='Hello', xyzrpy=[0, 0, 0, 0.2, 0, 0], reference_frame='world', dimensions=0.3))
text_marker_2 = rv.add_persistent_marker(create_text_marker(name='text', id=2, text='World', xyzrpy=[0, 1, 0, 0.2, 0, 0], reference_frame='world', dimensions=0.3))

Parameters

Remarks

Examples

text

The text to be displayed

A string

xyzrpy

The pose of the text block

A list of 6 numbers (xyzrpy)

dimensions

The size of the text block

One number

Developer

Dr Andrew Lui, Senior Research Engineer
Robotics and Autonomous Systems, Research Engineering Facility
Research Infrastructure
Queensland University of Technology

Latest update: May 2024
